Graphite Blocks & Billets

Product Details

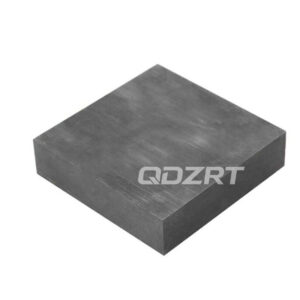

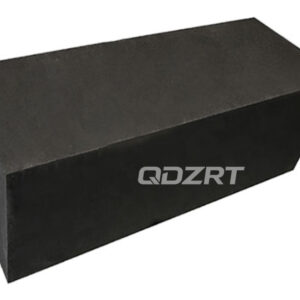

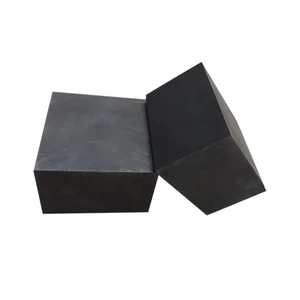

Graphite Block is a solid synthetic graphite material supplied in block form for machining, high-temperature processing, EDM electrodes, metallurgical tooling, furnace components, and selected high-temperature industrial parts. QDZRT Graphite separates the main forming routes into DJY Series isostatic graphite, MY Series molded graphite, and JY Series extruded graphite. Fine-grain, high-purity, EDM, and other requirements are then confirmed as grade or application requirements.

Compared with graphite sheet, graphite paper, or graphite powder, Graphite Block is a more structural graphite product designed for shaping, machining, load-bearing support, and precision graphite component production. It is widely used in EDM electrode fabrication, furnace fixtures, molds, crucibles, hot-zone parts, metallurgical tooling, and custom graphite machining projects.

Choose Your Graphite Block Type

The three QDZRT Graphite forming series are separated below so buyers can enter the material route that matches the application. Fine-grain, high-purity, EDM and other requirements are grade attributes or application requirements rather than parallel forming methods.

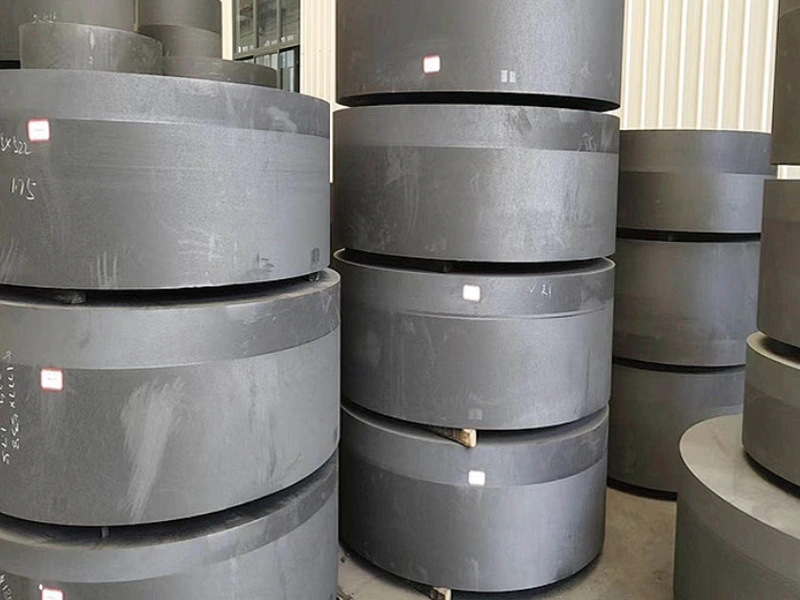

DJY-T01–DJY-T04 — Isostatic Graphite

Fine grain by selected grade | Relatively isotropic | Precision applications

Ultrafine, isotropic structure with uniform mechanical and electrical properties in all directions. Engineered for precision CNC machining, EDM electrodes, semiconductor hot-zone fixtures, and high-spec furnace tooling.

MY-T01–MY-T03 — Molded Graphite

Grain size by selected grade | Balanced cost | Medium & large blocks

Balanced machinability, mechanical performance, and cost efficiency in medium and large block formats. Widely deployed in continuous casting dies, metallurgy tooling, vacuum furnace supports, and mechanical seals.

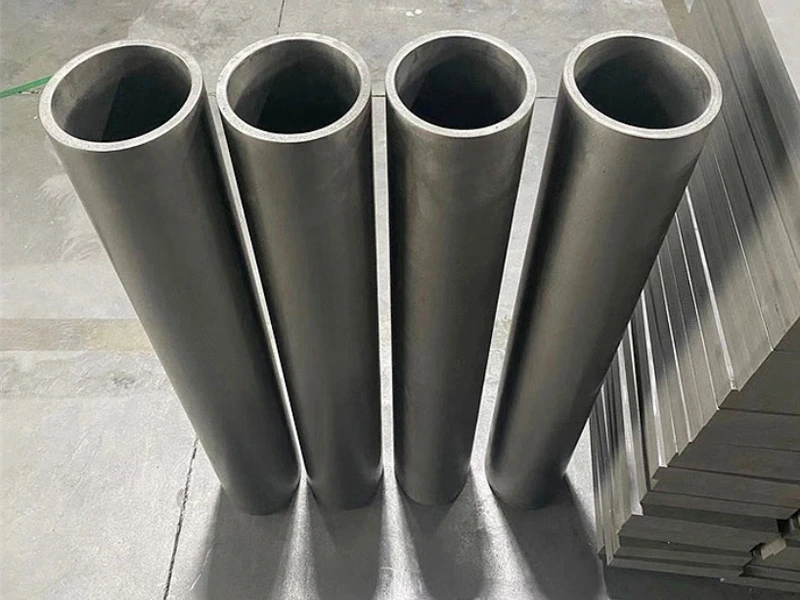

JY-T01–JY-T02 — Extruded Graphite

Grain size by selected grade | Directional properties | Large rods

Economical extruded stock for large-diameter rods, heating elements, furnace structural skeletons, and bulk metallurgical tooling where material direction and grain orientation are factored into design.

Forming-route overview: molded, extruded and isostatic graphite are separated by manufacturing route. — Forming-route overview: molded, extruded and isostatic graphite are separated by manufacturing route at QDZRT Graphite factory.

Forming Route Engineering Decision Matrix

To help engineers and procurement teams determine the optimal forming route for specific operating envelopes, the table below compares the physical, mechanical, dimensional, and economic characteristics across the three primary manufacturing routes of QDZRT Graphite:

Evaluation Criteria	DJY Series (Isostatic)	MY Series (Molded)	JY Series (Extruded)
Microstructural Grain Size	Grade-specific; consult the DJY grade table	Grade-specific; consult the MY grade table	Grade-specific; consult the JY grade table
Structural Homogeneity	Relatively isotropic; verify properties by grade and test direction	Weakly directional / near-isotropic	Pronounced anisotropy (With-Grain vs Against-Grain)
Typical Bulk Density Range	Grade-specific; consult the DJY grade table	Grade-specific; consult the MY grade table	Grade-specific; consult the JY grade table
Flexural Strength Level	Grade-specific; consult the DJY grade table	Grade-specific; consult the MY grade table	Grade-specific; consult the JY grade table
Achievable CNC Machining Precision	Ultra-precision (±0.01 mm, Ra ≤0.8 μm)	Precision standard (±0.05 mm, Ra ≤1.6 μm)	General machining (±0.1–0.2 mm, Ra ≤3.2 μm)
Maximum Production Envelope	Billet and round sizes depend on the selected DJY grade; confirm availability	Block sizes depend on the selected MY grade; confirm availability	Rod and section sizes depend on the selected JY grade; confirm availability
Relative Cost Index	High-performance tier	Balanced / Cost-effective tier	Bulk economical tier
Primary Industrial Applications	EDM electrodes, 3D glass molds, semiconductor hot zones	Continuous casting dies, sintering trays, mechanical seals	Industrial furnace heating elements, structural frames, cathodes

Graphite block anisotropy diagram: comparison of isotropic isostatic structure and directional extruded graphite. — Microstructural comparison: isostatic graphite is relatively uniform, while extruded graphite can show direction-dependent properties; verify by grade and measurement direction.

QDZRT Graphite Grade Architecture & Technical Parameters

Forming Route Classification

Graphite Block is not a single fixed material grade. Different production routes create different performance characteristics in density, grain size, machinability, electrical resistivity, strength, purity, and cost structure. For industrial projects, selecting the appropriate graphite type and forming method is more useful than relying on the product name alone.

Graphite Type & Forming Method	Typical Characteristics	Typical Use
DJY-T01–DJY-T04 — Isostatic Graphite	Fine grain, uniform structure, higher density, better dimensional consistency, and excellent machinability	EDM, precision molds, semiconductor-related graphite components, and high-end furnace parts
MY-T01–MY-T03 — Molded Graphite	Good balance of machinability, performance, and cost, suitable for medium and larger block formats	General industrial graphite blocks, metallurgy, fixtures, molds, and custom machined parts
JY-T01–JY-T02 — Extruded Graphite	Coarser grain direction, cost-effective supply, and practical performance for larger sections	General furnace use, larger graphite sections, selected metallurgical applications, and industrial tooling

QDZRT Graphite Grade System

This table defines the single QDZRT Graphite grade system by forming route. DJY, MY and JY are the only top-level Graphite Block series. Fine grain, purity, EDM, PV, mold and other requirements remain attributes of the selected grade.

QDZRT Graphite Grade Group	Forming Route	Selection Basis
DJY-T01–DJY-T04	Isostatic Graphite	Fine grain, purity, EDM, PV and mold requirements are grade attributes; they are not separate forming routes.
MY-T01–MY-T03	Molded Graphite	Mechanical/seal, sintering and high-temperature requirements are selected by grade within the molded route.
JY-T01–JY-T02	Extruded Graphite	Directional properties are confirmed by the selected extruded grade and measurement/service direction.

Technical Parameter Summary

Item	Typical Product Option
Product Name	Graphite Block
Alternative Names	Carbon Graphite Block / Synthetic Graphite Block / Isostatic Graphite Block / Fine Grain Graphite Block / High Purity Graphite Block / EDM Graphite Block
Appearance	Black to dark gray solid graphite block

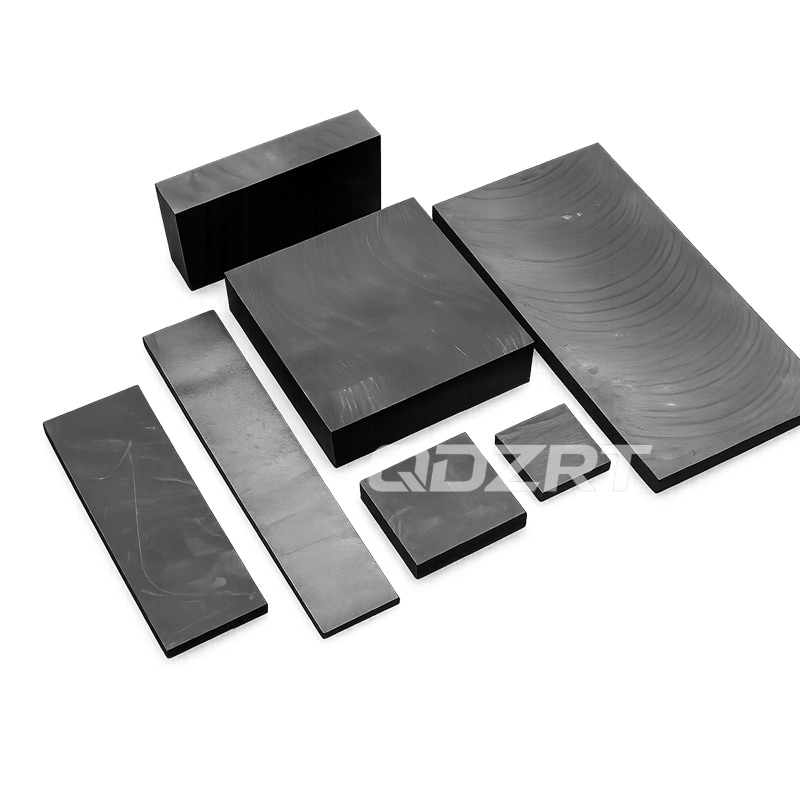

Form	Block / Plate / Slab / Machined Block / Custom Graphite Part
Material Type	DJY Series Isostatic Graphite / MY Series Molded Graphite / JY Series Extruded Graphite; fine grain, purity and application are grade attributes.
Density	Grade-specific only; no cross-grade density envelope is used as a purchasing specification.
Carbon Content	Purity is a grade attribute only when explicitly specified; do not infer a carbon minimum from the forming series.
Ash Content	Grade-specific maximum only when published for the selected grade.
Particle Size	Grade-specific; fine/coarse grain is an attribute, not a forming route.
Electrical Resistivity	Grade-specific range or maximum only; do not combine endpoints across grades.
Machinability	Depends on selected grade, grain structure, direction, geometry and machining requirement.
Application Grade	DJY-T01–DJY-T04 / MY-T01–MY-T03 / JY-T01–JY-T02 + grade attributes (fine grain / purity / EDM / application).
Processing Method	Sawing, milling, turning, drilling, CNC machining, and drawing-based processing
Supply Format	Raw Block / Cut Block / Semi-Finished Blank / Fully Machined Part

Supply Formats & Precision CNC Machining Capabilities

Raw Billets, Pre-Cut Blanks & CNC Finished Parts

QDZRT Graphite accommodates different stages of industrial procurement, from machine shops requiring raw stock to OEMs needing turnkey components:

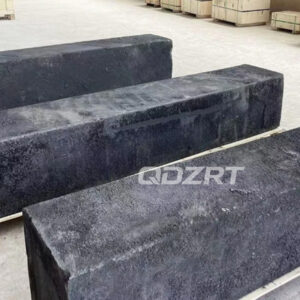

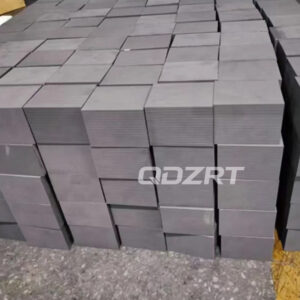

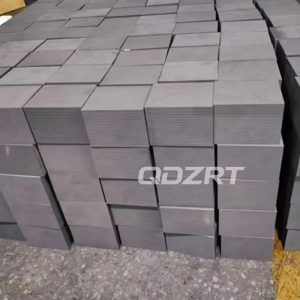

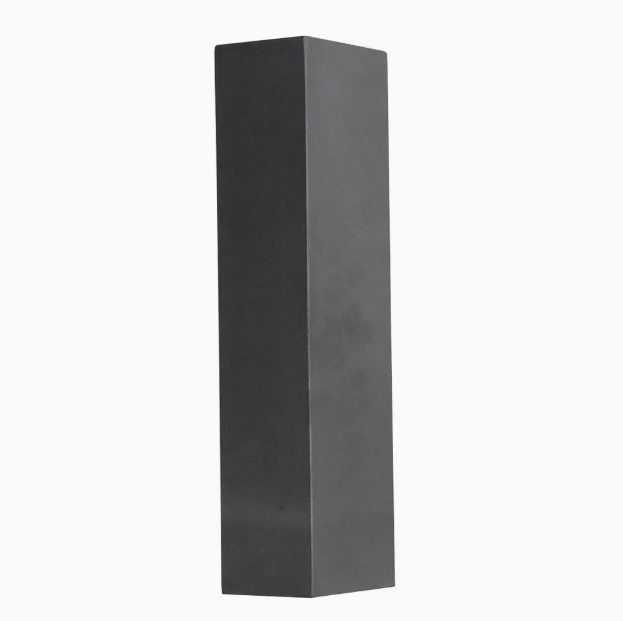

Full-Size Raw Billets (Factory As-Pressed): Standard rectangular billets and cylindrical rods for commercial distributors and machining centers with in-house cutting capacity.
Custom Sawn Blanks (Pre-Cut to Dimensions): Sawn with precision circular saws to custom bounding dimensions (-0/+2.0 mm tolerance). This eliminates rough machining waste and substantially cuts air/ocean freight costs for overseas buyers.
Precision CNC Finished Parts: Fully machined components manufactured strictly to 2D/3D engineering drawings, complete with deburring, ultrasonic cleaning, and protective packaging.

Precision CNC Machining Capabilities & Tolerances

As an integrated manufacturer and CNC machining specialist based in Qingdao, QDZRT Graphite operates multi-axis CNC milling centers, heavy-duty CNC lathes, surface grinders, and specialized graphite dust collection systems. We routinely manufacture tight-tolerance parts with verified repeatable accuracy:

Machining Tolerances: General CNC milling maintained at ±0.05 mm; precision and fine-feature machining held to ±0.01 mm.
Surface Roughness: Surface finish Ra 0.8–1.6 μm depending on grade grain size and tooling requirements.
Drawing Formats Supported: STEP (.stp), IGES (.igs), AutoCAD (.dwg, .dxf), and PDF technical drawings. Full DFM (Design for Manufacturability) reviews are conducted before production.
Inspection & Cleanliness: Coordinate Measuring Machine (CMM) dimensional verification, dust-free cleaning, and nitrogen/vacuum-sealed moisture-barrier packaging.

Industrial Applications & Material Performance

Core Physical & Thermal Features

Solid graphite material suitable for machining, shaping, and structural graphite applications
Good high-temperature performance in suitable non-oxidizing or controlled atmospheres
Good resistance to thermal shock under proper service conditions
Good electrical conductivity and thermal conductivity depending on material grade
Good chemical resistance in many industrial environments
Three forming-route series: DJY isostatic, MY molded, and JY extruded; fine-grain and high-purity requirements are selected by grade
Suitable for EDM, furnace, mold, metallurgical, and selected high-purity applications
Can be machined into customized graphite parts according to drawings or samples

Main Application Sectors

EDM graphite block for mold and die electrode production
High purity graphite block for selected high-temperature and contamination-sensitive processing systems
Fine grain graphite block for precision machining and detailed mold structures
Synthetic graphite block for furnace fixtures, trays, hot-zone parts, and thermal process tooling
Carbon graphite block for metallurgy, casting, and industrial graphite component manufacturing
Custom machined graphite block for rings, plates, molds, boats, trays, fixtures, and engineered graphite parts

Why Choose Graphite Block for Industrial Use

Graphite Block is preferred in many industrial sectors because it offers a practical balance of machinability, thermal performance, chemical stability, electrical conductivity, and dimensional processing flexibility. Compared with graphite powder or flexible graphite materials, it is more suitable for applications requiring fixed geometry, load-bearing support, controlled machining, or customized component design.

Depending on the selected grade, Graphite Block can support a wide range of application options, from cost-effective general industrial applications to high-purity and fine-grain graphite components. QDZRT Graphite matches density, purity, grain size, resistivity, and block size according to service conditions, contamination limits, dimensional tolerances, and machining requirements.

Engineering Product Advantages

Multiple graphite types and forming methods for different price and performance requirements
Grade selection can include application, grain-size and purity attributes within the DJY/MY/JY system
Suitable for both standard block supply and drawing-based graphite machining
Good balance of heat resistance, conductivity, machinability, and dimensional stability
Suitable for specification review, pilot-batch planning, and bulk industrial supply
Supports inquiry matching by application, material grade, block size, and machining requirement

Customization, Packaging & Compliance Guidance

Customization Options & Services

QDZRT Graphite provides tailored Graphite Block specifications according to different application requirements, including material grade, density, purity, grain size, block size, machining allowance, and finished-part format. Specification review, pilot-batch planning, drawing-based machining, and bulk order services are available for industrial users, OEM customers, and graphite component buyers.

Customized supply options include raw block cutting, semi-finished blanks, CNC machining, drilled or slotted structures, precision plates, rings, trays, furnace fixtures, molds, and other engineered graphite parts. QDZRT Graphite supplies molded, extruded, and isostatic graphite blocks for EDM, furnace, casting, and custom-machining applications, with both standard and custom project support.

Export Packaging & Storage

Graphite Block is available in standard packaging and customized packaging options, including raw block packaging, semi-finished blank packaging, machined-part packaging, small-lot supply, and bulk industrial export packaging. Packaging is arranged according to block size, machining condition, surface protection requirement, and shipment method (fumigated wooden crates, honeycomb cartons, and customized shock-absorbing EPE foam).

The material should be stored in a clean, dry, and well-protected environment to avoid contamination, impact damage, and unnecessary moisture exposure. Proper handling and storage help maintain dimensional integrity and surface quality during transportation, machining preparation, and long-term storage.

Inquiry Guidance & Compliance Documentation

To help QDZRT Graphite recommend the most suitable Graphite Block grade, please specify the operating environment, required forming route (or leave open for recommendation), target dimensions or CAD drawing, operating temperature, furnace atmosphere, and tolerance limits.

For international buyers requiring compliance support, QDZRT Graphite provides complete dual-use export license assistance, End-User Certificate (EUC) verification guidance, and certified batch Certificates of Analysis (CoAs) for smooth customs clearance.

Frequently Asked Questions (FAQ)

Q1: How do I choose between isostatic, molded, and extruded graphite blocks?

The choice is governed by grain size, property uniformity, and budget. For precision EDM electrodes, semiconductor parts, and tight-tolerance components requiring isotropic properties in all directions, select DJY Isostatic Graphite. For medium-to-large molds, continuous casting dies, and sintering fixtures where balanced strength and cost are required, choose MY Molded Graphite. For large furnace heating elements, structural supports, and heavy metallurgical tooling where directional properties are acceptable, JY Extruded Graphite offers the most economical solution.

Q2: Can QDZRT Graphite supply pre-cut sawn blanks instead of full raw billets?

Yes. QDZRT Graphite provides precision band-sawing and circular-saw cutting services. We cut blocks to your specified roughing dimensions (-0/+2.0 mm allowance), allowing overseas customers to reduce machining scrap, save machining spindle time, and significantly lower international shipping weight.

Q3: What machining tolerances and surface finishes can QDZRT Graphite achieve on custom parts?

With multi-axis CNC milling, high-speed turning, and precision surface grinding, QDZRT Graphite holds general machining tolerances to ±0.05 mm and precision tolerances to ±0.01 mm. Achievable surface roughness ranges from Ra 0.8 μm to 1.6 μm depending on the chosen graphite grade grain size.

Q4: What export compliance and quality certifications are provided with graphite block shipments?

Batch-specific test documents and export-control requirements are confirmed for the selected grade, destination, end use, and agreed order documents. Where applicable, QDZRT Graphite coordinates the required license and end-user documentation before shipment.
