Graphite Sealing Materials
Graphite Sealing Materials cover flexible graphite sheets, reinforced graphite sheets, graphite gaskets, packing rings, braided packing, and graphite-filled gasket solutions for valves, pumps, flanges, steam lines, and industrial equipment.
High-Temperature Service
Multiple Material Structures
Custom Sealing Supply
THICKNESS RANGE
0.6 / 0.8 / 1.0 / 1.5 / 2.0 / 3.0 mm
DENSITY RANGE
Typical 1.0–1.2 g/cm³ by Form
STANDARD WIDTH
Sheet Size / Rolls / Custom Cuts
SUPPLY FORM
Sheet / Gasket / Packing / Ring
PRODUCT SPECIFICATIONS AND DETAILS
Graphite Sealing Materials refer to a broad family of industrial sealing products manufactured from flexible graphite, expanded graphite, reinforced graphite laminate, graphite yarn, and graphite-based composite structures. In industrial sourcing, this product family is also commonly searched as flexible graphite sheet, graphite gasket sheet, graphite gasket material, reinforced graphite sheet, graphite laminate sheet, graphite sealing ring, graphite packing ring, die formed graphite ring, braided graphite packing, graphite gland packing, expanded graphite packing, and spiral wound gasket with graphite filler.
At QDZRT Graphite, Graphite Sealing Materials are positioned as a full-coverage sealing category rather than a single item. Customers can source multiple graphite sealing forms, including sheet materials, die-cut gaskets, flange gaskets, packing rings, braided packing, metal-reinforced graphite sheets, and graphite-filled semi-metallic gasket solutions.
For buyers serving valves, pumps, flanges, reactors, pipelines, steam lines, furnaces, petrochemical systems, and general industrial equipment, this category is designed to provide one integrated source for both standard and customized graphite sealing products.
Table of Contents
Show Table of Contents
Key Features
- Broad graphite sealing product coverage from sheet materials to finished gaskets, rings, packing products, and semi-metallic gasket solutions
- Good resistance to heat, pressure, many chemical media, and repeated thermal cycling conditions
- Available in plain flexible graphite, reinforced graphite laminate, braided graphite packing, die formed rings, and graphite-filled gasket structures
- Suitable for valves, pumps, flanges, pipelines, reactors, steam lines, petrochemical systems, and general industrial equipment
- Supports standard sizes, DIN / ANSI matching, die-cut shapes, packing sets, and drawing-based customization
- Can be selected according to sealing position, operating temperature, pressure class, media condition, and installation design
What This Category Covers
| Product Type | Common Names | Typical Construction | Main Use |
|---|---|---|---|
| Flexible Graphite Sheet | Flexible graphite sheet / graphite foil / graphite gasket sheet / graphite sealing sheet | Pure flexible graphite sheet, plain or laminated | Base material for gasket cutting, flange sealing, thermal barriers, and custom sealing parts |

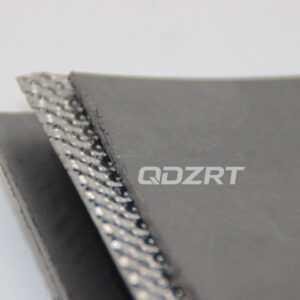

| Reinforced Graphite Sheet | Reinforced graphite sheet / graphite laminate / SS reinforced graphite gasket sheet / tanged graphite sheet | Flexible graphite with 316 / 316L tang insert, foil insert, or multi-layer reinforcement | Higher-strength sheet gaskets for industrial flanges and pressure sealing |

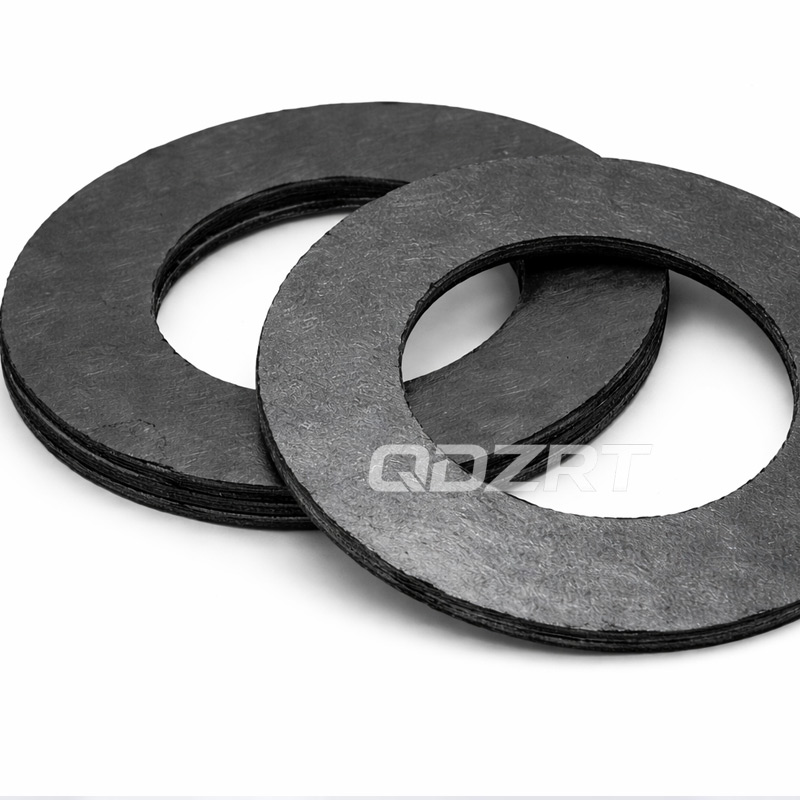

| Graphite Gaskets | Graphite gasket / graphite flange gasket / die-cut graphite gasket / graphite ring gasket | Die-cut gaskets from plain or reinforced graphite sheet | Static flange sealing, pipeline joints, valves, covers, and heat exchangers |

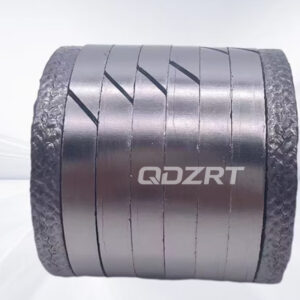

| Graphite Packing Rings | Graphite sealing ring / graphite packing ring / die formed graphite ring | Compressed low-sulfur expanded graphite ring, with or without reinforcement | Valve stem sealing, pump sealing sets, and packing replacement systems |

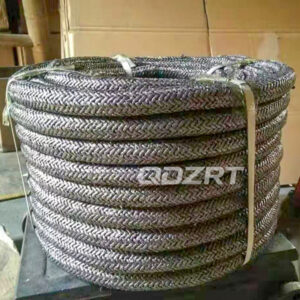

| Braided Graphite Packing | Braided graphite packing / graphite gland packing / expanded graphite packing / valve packing | Expanded graphite yarn, with optional Inconel wire, metal wire, PTFE impregnation, or corner reinforcement | Valves, pumps, steam service, high-temperature sealing, and high-pressure stuffing box applications |
| Spiral Wound Gaskets with Graphite Filler | Spiral wound gasket with graphite filler / graphite filler gasket / metal graphite gasket | 304 / 316L stainless steel winding with flexible graphite filler, with outer ring or inner and outer rings | High-pressure flange sealing, thermal cycling systems, petrochemical lines, and process piping |
Typical Product Data by Sealing Form
The values below are intended for website presentation and inquiry guidance. Final data may vary according to material grade, insert type, reinforcement structure, gasket design, and operating environment. Temperature, pressure, and chemical compatibility should be confirmed according to gasket structure, reinforcement type, media condition, and installation design.
| Product Form | Typical Available Range | Selection Notes |
|---|---|---|
| Flexible Graphite Sheet |
Carbon Content: typically ≥98% Typical Density: around 1.0 g/cm³ for flexible graphite products Common Sheet / Laminate Thickness: about 0.6 / 0.8 / 1.0 / 1.5 / 2.0 / 3.0 mm Common Standard Sheet Size: 1000 × 1000 mm or equivalent industrial formats |
Used as base material for cutting graphite gaskets, ring gaskets, and special sealing parts |
| Reinforced Graphite Sheet |
Carbon Content: typically ≥98% Reinforcement Options: 316 / 316L foil insert, tanged 316 / 316L insert, or multilayer structures Thickness: selected according to flange load, sealing stress, and installation requirements Optional anti-stick or surface identification treatments available |
Preferred when better handling strength, dimensional support, or pressure stability is required |
| Braided Graphite Packing |
Typical Density: about 1.2 g/cm³ for common flexible graphite packing constructions Typical Cross-Section Range: 3 mm – 60 mm pH Range: 0 – 14, except strong oxidizers Temperature and Pressure: depend on style; valve and steam service grades available |
Can be supplied as plain graphite packing, wire-reinforced graphite packing, PTFE-impregnated graphite packing, or carbon-corner graphite packing |
| Die Formed Graphite Rings |
Material: low-sulfur expanded graphite, with or without reinforcement Construction: filler-free and binder-free compressed ring structures commonly available Size Standard: DIN / ANSI / custom dimensions |
Frequently supplied as preformed valve packing rings or custom sealing ring sets |
| Spiral Wound Gaskets with Graphite Filler |
Winding Material: typically 304 / 304L / 316 / 316L stainless steel Filler: flexible graphite Gasket Styles: winding only, with outer ring, with inner ring, or with both inner and outer rings Pressure Class Coverage: from vacuum service up to standard Class 2500 flange applications depending on design |
Selected for more demanding pressure, temperature, and thermal-cycling service conditions |
Performance Logic of Graphite Sealing Materials
The reason graphite sealing materials are widely used in industrial sealing is not limited to temperature resistance alone. Flexible graphite structures also provide good conformability, low leakage potential, broad chemical resistance, and strong adaptability to flange or stem sealing conditions. Compared with many conventional sheet or packing materials, graphite-based sealing materials perform reliably in applications involving steam, oils, heat transfer fluids, many acids and alkalis, and repeated thermal cycling.
Different product forms solve different sealing problems. Flexible graphite sheet and reinforced graphite laminate are typically used for static gasket fabrication. Graphite packing rings and braided graphite gland packing are commonly selected for valve and pump stuffing box sealing. Spiral wound gaskets with graphite filler are often used in flanged joints requiring higher mechanical integrity. Because of this, a complete Graphite Sealing Materials supplier should provide multiple graphite sealing constructions across sheet, ring, packing, and semi-metallic forms.
Application Matrix by Equipment Type
| Equipment / Service | Recommended Graphite Sealing Product | Why It Is Used |
|---|---|---|
| Pipe Flanges and Covers | Graphite gasket sheet, die-cut graphite gasket, reinforced graphite sheet gasket | Good sealing under heat, pressure, and flange surface irregularities |
| Valves | Graphite packing ring, die formed graphite ring, braided graphite valve packing | Reliable stem sealing, heat resistance, and low leakage performance |
| Pumps | Braided graphite gland packing, graphite packing set, graphite sealing ring | Suitable for dynamic sealing systems and pressure-loaded stuffing boxes |
| Steam and Thermal Oil Systems | Flexible graphite gaskets, reinforced graphite laminate, graphite packing | Good resistance to thermal cycling and elevated temperature conditions |
| Petrochemical and Process Lines | Graphite flange gaskets, spiral wound gaskets with graphite filler, high-purity graphite sealing materials | Chemical compatibility and dependable flange sealing performance |
| High-Pressure Industrial Service | Reinforced graphite sheet, spiral wound graphite filler gaskets, custom graphite ring gaskets | Higher mechanical strength and stronger resistance to blowout or compression instability |
Product Coverage for Industrial Buyers
QDZRT Graphite can supply graphite sealing materials in multiple commercial names and supply forms, including flexible graphite sheet, graphite gasket material, reinforced graphite gasket sheet, graphite laminate sheet, graphite foil gasket material, graphite flange gasket, graphite sealing ring, graphite packing ring, die formed graphite ring, valve graphite packing, braided graphite packing, expanded graphite packing, low-sulfur graphite packing, high-temperature graphite gasket material, and spiral wound gasket with graphite filler.
This broad coverage is important because buyers often search by application term rather than by one standard product name. For example, one customer may ask for a graphite gasket sheet supplier, while another may search for reinforced graphite flange gasket material, valve graphite packing rings, or braided graphite gland packing for steam service. In practical sourcing, these requests are closely related and belong to the same industrial sealing family.
Available Material Structures
- Plain flexible graphite sheet
- Reinforced graphite sheet with 316 / 316L foil insert
- Tanged reinforced graphite laminate
- Multilayer graphite sealing laminate
- Die-cut graphite flange gaskets and custom graphite gasket shapes
- Die formed graphite packing rings and sealing ring sets
- Braided expanded graphite packing
- Graphite packing reinforced with metal wire or Inconel wire
- Graphite packing with PTFE impregnation or special corner reinforcement
- Spiral wound metal gaskets with flexible graphite filler
How to Select the Right Graphite Sealing Product
Selection depends on whether the sealing point is static or dynamic, the flange load available, the target pressure, the service media, the maximum operating temperature, and whether the system experiences frequent thermal cycling. Static flange joints usually start from graphite gasket sheet, reinforced graphite laminate, or spiral wound gasket with graphite filler. Valve and pump stem sealing usually starts from graphite packing rings or braided graphite packing. Higher pressure and harsher service conditions often require reinforced or semi-metallic solutions rather than plain graphite sheet alone.
For project matching, buyers are encouraged to provide flange standard, pressure class, operating temperature, service media, preferred gasket style, thickness requirement, and whether the sealing point is for flange, valve, pump, reactor, or custom equipment. This helps QDZRT Graphite recommend a more suitable graphite sealing material rather than only quoting a generic sheet or ring.
Inquiry Information Needed
- Product form: sheet, roll, die-cut gasket, packing ring, braided packing, or spiral wound gasket
- Size, thickness, density, cross-section, or drawing requirement
- Flange standard, pressure class, gasket style, or equipment type if available
- Operating temperature, pressure, service media, and thermal cycling condition
- Reinforcement requirement, insert material, low-sulfur requirement, or anti-stick surface preference
- Quantity, packaging preference, export requirement, and expected delivery schedule
FAQ
How do I choose between graphite sheet, graphite gasket, packing ring, and braided packing?
The selection depends mainly on the sealing position. Flexible graphite sheet and reinforced graphite sheet are commonly used for static flange gaskets and die-cut sealing parts. Graphite packing rings and braided graphite packing are more suitable for valve stems, pumps, and stuffing box sealing. Spiral wound gaskets with graphite filler are usually selected for higher-pressure flange sealing or thermal cycling service.
What is the difference between flexible graphite sheet and reinforced graphite sheet?
Flexible graphite sheet is usually used as a base sealing material for gasket cutting and general flange sealing. Reinforced graphite sheet includes metal foil, tanged stainless steel, or multilayer reinforcement to improve handling strength, dimensional support, and pressure stability. Reinforced grades are often preferred when the sealing condition requires better mechanical support.
Can graphite sealing materials be customized according to drawings?
Yes. Graphite sealing materials can be supplied as sheets, rolls, die-cut gaskets, packing rings, braided packing, or assembled sealing sets. Custom options may include thickness, density, reinforcement structure, gasket shape, DIN or ANSI dimensions, packing cross-section, and drawing-based manufacturing.
Are graphite sealing materials suitable for high-temperature service?
Graphite sealing materials are widely used in high-temperature industrial sealing, including steam lines, thermal oil systems, furnaces, valves, and petrochemical equipment. The suitable temperature range depends on the product form, reinforcement material, media condition, pressure level, and whether the working environment is oxidizing or non-oxidizing.
Can graphite sealing materials be used with acids, alkalis, oils, and steam?
Graphite-based sealing materials generally offer broad chemical resistance and are commonly used with steam, oils, heat transfer fluids, and many acids and alkalis. However, chemical compatibility should always be confirmed according to the actual media, concentration, temperature, pressure, and gasket or packing structure.
What information should I provide before requesting a quotation?
For faster selection, please provide the product form, such as sheet, roll, gasket, packing ring, braided packing, or spiral wound gasket. It is also helpful to provide size, thickness, density, cross-section, flange standard, pressure class, working temperature, service media, quantity, and drawings if available.
Do you supply both standard graphite sealing products and custom parts?
Yes. Standard forms may include flexible graphite sheets, reinforced graphite sheets, braided graphite packing, graphite packing rings, and graphite-filled spiral wound gaskets. Custom supply can include die-cut gasket shapes, special ring sets, packing sets, reinforced laminates, and drawing-based sealing components.
What is low-sulfur graphite packing used for?
Low-sulfur graphite packing is often selected when the sealing system is sensitive to sulfur content, corrosion risk, or material compatibility. It is commonly considered for valves, pumps, steam service, and process equipment where cleaner graphite sealing materials are preferred.
Customization and Manufacturing Scope
QDZRT Graphite can provide Graphite Sealing Materials in roll, sheet, die-cut gasket, ring, braided packing, and assembled sealing-set form. Available options may include thickness adjustment, density preference, carbon purity direction, low-sulfur grade selection, reinforcement style, insert material, anti-stick treatment, DIN or ANSI size matching, and custom drawing-based manufacturing.
This means the category is not limited to one finished part. It can cover graphite gasket sheet supply, custom flange gaskets, reinforced graphite laminate conversion, preformed valve packing rings, braided packing coils, and semi-metallic gasket assemblies using graphite filler. For OEM, maintenance, and industrial replacement projects, this full-coverage approach is often more useful than sourcing each graphite sealing item separately from multiple vendors.
Packaging and Supply
Depending on product form, Graphite Sealing Materials may be supplied as flat sheets, rolls, die-cut gaskets, nested ring sets, braided packing coils, boxed packing rings, or palletized industrial batches. Export packaging can be arranged to reduce edge damage, moisture exposure, contamination, and deformation during transport. Both regular industrial supply and project-based custom orders are supported.
Supply Summary
Graphite Sealing Materials are not a single product, but a complete industrial sealing family built around flexible graphite and graphite-based composite structures. When properly selected, they provide broad chemical resistance, dependable high-temperature sealing performance, strong conformability, and versatile conversion into sheet gaskets, ring gaskets, packing rings, braided packing, and graphite-filled semi-metallic gaskets.
For buyers looking for one supplier that can cover flexible graphite sheet, reinforced graphite sheet, graphite gaskets, graphite packing rings, braided graphite packing, and graphite filler sealing solutions, QDZRT Graphite can provide both standard products and customized industrial sealing support.
