EDM Graphite Materials & Custom Graphite Parts for Precision Tooling
Graphite materials are widely used in EDM and precision tooling because they are easier to machine into complex shapes, support good dimensional stability, and perform reliably in demanding electrode and tooling applications. For many industrial buyers, the real question is not whether graphite is used in EDM, but which graphite route is more suitable for the project: stock blocks for internal machining or finished custom graphite parts made to drawings.
QDZRT Graphite supplies graphite blocks and custom machined graphite parts for EDM electrodes, mold inserts, fixtures, jigs, and other precision tooling components. We support buyers who machine graphite in-house as well as customers who need ready-to-use graphite parts produced according to drawings, samples, or specific application requirements.
Typical Use Cases
Our graphite materials and custom graphite parts are commonly used in EDM and precision tooling projects where geometry control, machining efficiency, and repeatable performance are important.
EDM Electrodes
Graphite blocks and electrode materials for die-sinking EDM, fine-detail machining, and repeat electrode production where stable machining behavior matters.
Mold Making
Graphite materials and machined parts used for mold cavities, inserts, and tooling structures with demanding geometry and dimensional requirements.
Jigs & Fixtures
Custom graphite components for positioning, support, and tooling assemblies used in precision production and process-specific setups.
Complex Parts
Drawing-based graphite parts for slots, ribs, small features, and other geometries that are difficult or inefficient to produce with less machinable materials.
Why Graphite Is Used
Graphite remains a practical material choice in many EDM and precision tooling applications because it combines machinability, dimensional stability, and process suitability in a way that supports efficient production.
Excellent Machinability
Graphite can be machined into detailed shapes efficiently, making it suitable for electrodes, inserts, and tooling parts with demanding geometry.
Stable Thermal Performance
Useful thermal stability helps graphite remain reliable during EDM-related processing and tooling applications where heat conditions may vary.
Dimensional Consistency
Low distortion and stable machining behavior support repeatable accuracy in many precision tooling and electrode applications.
Fine Feature Capability
Graphite is well suited for parts with slots, thin ribs, fine details, and other features that require clean machinability.
Wear and Erosion Resistance
In many EDM and tooling uses, the right graphite route can support longer service life and more stable working performance.
Repeatable Production Results
Consistent graphite grades and proper machining control help support repeatable results across batch production and recurring jobs.
Related Product Routes
For EDM and precision tooling, buyers usually choose between two main product routes: stock graphite blocks for in-house machining, or custom machined graphite parts for drawing-based supply.

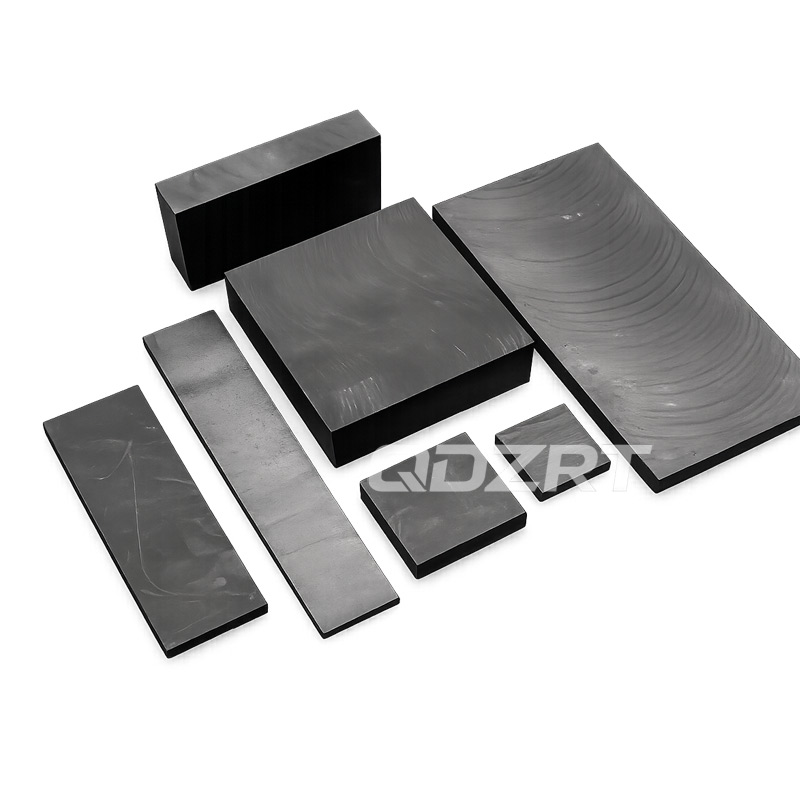

Graphite Block
Graphite block is the more suitable route for buyers who machine electrodes, inserts, or tooling parts internally and need reliable stock material in workable sizes and grades.
- Suitable for EDM electrodes and in-house machining
- Available in different grades and block sizes
- Better for projects requiring internal machining flexibility

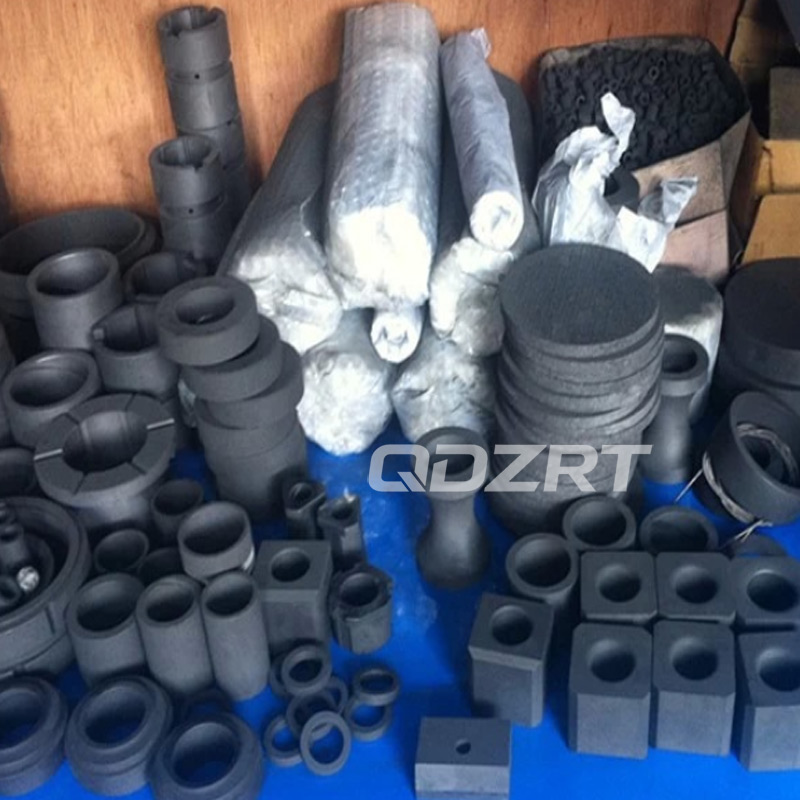

Custom Graphite Machined Parts
Custom graphite machined parts are the better route for buyers who need ready-to-use components produced according to drawings, samples, or application-specific geometry.
- Drawing-based custom machining support
- Suitable for complex geometry and tight-tolerance projects
- Better for buyers needing finished parts instead of stock blocks
Recommended Selection Factors
Graphite Grade for EDM Process Type
The right grade depends on EDM process, expected wear behavior, part function, and target machining result.
Density and Strength Balance
Different density levels can affect wear resistance, mechanical behavior, and machining performance.
Grain Size for Detail and Finish
Finer grain structures may be more suitable for detailed geometry and higher surface quality requirements.
Geometry Complexity
Part shape, ribs, slots, and fine features can influence which graphite route is more appropriate.
Surface Finish Requirement
Finish expectations may affect both material choice and machining strategy.
Tolerance and Inspection Expectation
Required dimensional accuracy should be confirmed before production, machining planning, and inspection arrangement.
How Buyers Usually Select
- Confirm the EDM application type and tooling environment
- Decide whether stock graphite or finished custom parts are needed
- Review drawings, dimensions, and geometry complexity
- Check tolerance, finish, and inspection expectations
- Compare quantity, lead time, and supply method
- Confirm packaging and delivery requirements for the project
Custom Machining Capability
Milling
Machining support for blocks, steps, slots, pockets, and structural graphite parts used in EDM and tooling applications.
Drilling
Accurate holes, openings, and part features for fixtures, inserts, tooling components, and drawing-based graphite parts.
Drawing-Based Production
Custom graphite parts produced from customer drawings, samples, or project requirements for EDM and precision tooling use.
Quality Inspection
Dimensional checks and process control to support stable delivery quality and repeatable production results.
FAQ
Why is graphite widely used for EDM electrodes?
Which graphite grade is better for EDM applications?
Should I choose graphite block or custom machined graphite parts?
Can you machine graphite parts according to our drawings?
What tolerance can you achieve for custom graphite parts?
Do you provide material documentation and supply support?
Quality Control Support
In-process control and final checks help support stable batch quality and delivery consistency.
Drawing-Based Machining
Custom graphite parts can be produced according to drawings, samples, or application-specific requirements.
Quotation and Technical Response
Support is available for material-route discussion, drawing review, and quotation feedback.
Export Supply Coordination
Packaging and delivery support can be arranged for overseas industrial orders and project-based supply.
Need Help with Your EDM or Precision Tooling Project?
Send your drawings, application details, or machining requirements to QDZRT Graphite. Our team can help you choose the right graphite block or custom-machined part route for your project.
